Langkah pertama desainlah form seperti di bawah ini :
Kemudian tambahkan menustrip (pada toolbox Menu & Toolbar),OpenFileDialog (pada toolbox Dialog) dan SaveFileDialog (pada toolbox Dialog)
OpenFileDialog -> name dirubah jadi OFD
SaveFileDialog -> name dirubah jadi SFD
Isi menu
Kemudian ketk syntax programnya seperti di bawah ini :
Public Class Form1
Dim gambar As Bitmap
Private Sub OpenCitraToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles OpenCitraToolStripMenuItem.Click
OFD.Filter = "BMP|*.bmp|JPG|*.Jpg"
OFD.ShowDialog()
If OFD.FileName = "" Then Exit Sub
Pic1.Image = Image.FromFile(OFD.FileName)
gambar = New Bitmap(Pic1.Image)
End Sub
Private Sub SavToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SavToolStripMenuItem.Click
SFD.Filter = "JPG|*.Jpg|BMP|*.bmp"
SFD.ShowDialog()
If SFD.FileName = "" Then Exit Sub
If SFD.FilterIndex = 1 Then
gambar.Save(SFD.FileName, System.Drawing.Imaging.ImageFormat.Jpeg)
End If
If SFD.FilterIndex = 2 Then
gambar.Save(SFD.FileName, System.Drawing.Imaging.ImageFormat.Bmp)
End If
End Sub
Private Sub GrayscaleToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles GrayscaleToolStripMenuItem.Click
Dim Pb, Pc As Integer
Dim Rt, vM, vH, vB As Double
With gambar
For Pb = 0 To .Height - 1
For Pc = 0 To .Width - 1
vM = .GetPixel(Pc, Pb).R
vH = .GetPixel(Pc, Pb).G
vB = .GetPixel(Pc, Pb).B
Rt = (vM + vH + vB) / 3
.SetPixel(Pc, Pb, Color.FromArgb(Rt, Rt, Rt))
Next
Pic2.Image = gambar
Pic2.Refresh()
Next
End With
End Sub
Private Sub NegatifToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles NegatifToolStripMenuItem.Click
Dim Pb, Pc As Integer
Dim vM, vH, vB As Double
With gambar
For Pb = 0 To .Height - 1
For Pc = 0 To .Width - 1
vM = 255 - .GetPixel(Pc, Pb).R
vH = 255 - .GetPixel(Pc, Pb).G
vB = 255 - .GetPixel(Pc, Pb).B
If vM <= 0 Then vM = 0
If vB <= 0 Then vB = 0
If vH <= 0 Then vH = 0
.SetPixel(Pc, Pb, Color.FromArgb(vM, vH, vB))
Next
Pic2.Image = gambar
Pic2.Refresh()
Next
End With
End Sub
Private Sub BrightnessToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BrightnessToolStripMenuItem.Click
Dim Pb, Pc As Integer
Dim vM, vH, vB As Double
With gambar
For Pb = 0 To .Height - 1
For Pc = 0 To .Width - 1
vM = .GetPixel(Pc, Pb).R + 5
vH = .GetPixel(Pc, Pb).G + 5
vB = .GetPixel(Pc, Pb).B + 5
If vM > 255 Then vM = 255
If vB > 255 Then vB = 255
If vH > 255 Then vH = 255
.SetPixel(Pc, Pb, Color.FromArgb(vM, vH, vB))
Next
Pic2.Image = gambar
Pic2.Refresh()
Next
End With
End Sub
Private Sub MenuStrip1_ItemClicked(ByVal sender As System.Object, ByVal e As System.Windows.Forms.ToolStripItemClickedEventArgs) Handles MenuStrip1.ItemClicked
gambar = New Bitmap(Pic1.Image)
End Sub
Private Sub KeluarToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles KeluarToolStripMenuItem.Click
End
End Sub
Private Sub BinerToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BinerToolStripMenuItem.Click
Dim Pb, Pc As Integer
Dim rata, vM, vH, vB As Double
With gambar
For Pb = 0 To .Height - 1
For Pc = 0 To .Width - 1
vM = .GetPixel(Pc, Pb).R
vH = .GetPixel(Pc, Pb).G
vB = .GetPixel(Pc, Pb).B
rata = (vM + vH + vB) / 3
If (rata < 128) Then
vM = 0
vH = 0
vB = 0
Else
vM = 255
vH = 255
vB = 255
End If
.SetPixel(Pc, Pb, Color.FromArgb(vM, vH, vB))
Next
Pic2.Image = gambar
Pic2.Refresh()
Next
End With
End Sub
Private Sub Rotate270ToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles RotateToolStripMenuItem.Click
Dim gambar2 = New Bitmap(Pic2.Image)
gambar2 = New Bitmap(Pic2.Image)
Pic2.Image = gambar2
gambar2.RotateFlip(RotateFlipType.Rotate270FlipX)
Pic2.Image = gambar2
End Sub
Private Sub Rotate90ToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles RotateToolStripMenuItem.Click
Dim gambar2 = New Bitmap(Pic2.Image)
gambar2 = New Bitmap(Pic2.Image)
Pic2.Image = gambar2
gambar2.RotateFlip(RotateFlipType.Rotate90FlipX)
Pic2.Image = gambar2
End Sub
End Class
Kemudian klik debug atau tekan F5 untuk menjalankan program
Maka tampilannya akan seperti ini setelah anda memasukkan gambar ke picturebox nya
Lalu pilih manipulasi citra
Tampilan Grayscale
Tampilan Negatif

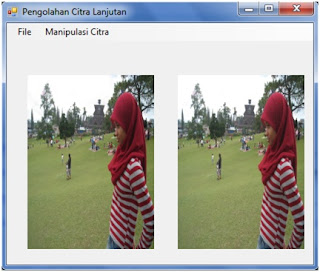

Tampilan Brightness
Tampilan Biner
Tampilan Rotasi 90 derajat
Tampilan Rotasi 270 derajat
Demikian program sederhana pengolahan cutra
Selamat Mencoba
